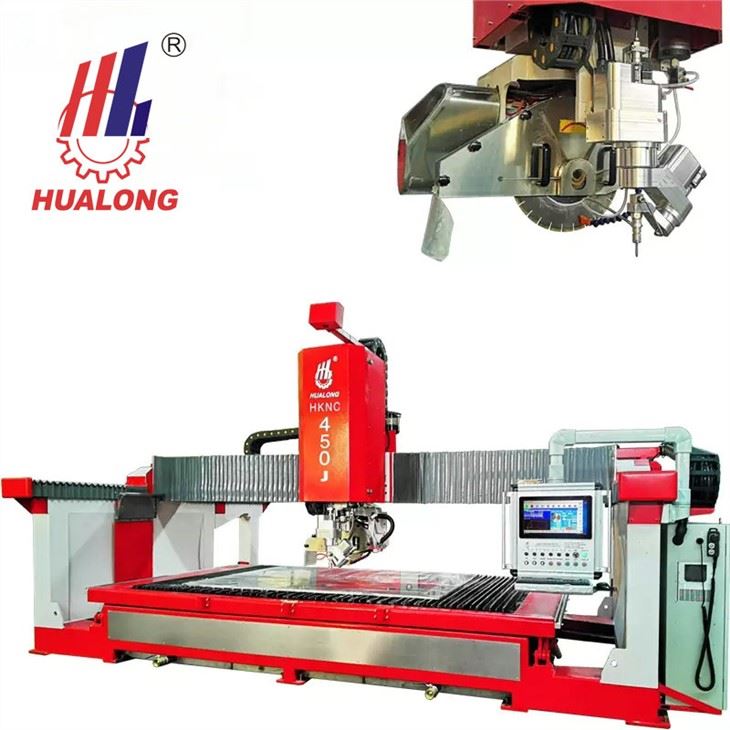

POB ZEB SAWJET

Kev Lag Luam Kev Lag Luam

1: Txoj kab uas hla ntawm Sawbalde: φ 350- φ4 φ450mm

2: Qhov ntev ntawm lub tshuab (LXWXH): 6000x3820x3200mm

3: Qhov loj me ntawm cov ua haujlwm platform: 4150x2250mm

4: Max. Ntev ntawm kab rov tav txiav: 3500 hli

5: Max.Cutting Dav: 2000mm

6: Max. Kev txiav tuab ntawm pom: 100mm

7: Max. Nqa cov: 320mm

8: Lub zog ntawm sawing Tsav: 26.4KW

9: Lub Hwj Chim Rau Cov Abrasive Waterjet: 37KW

10: Tag nrho lub zog: 60.6kw

11: Yuav tsum muaj siab ntawm inflow: 0. 4mpa

12: Max.operating Dej Siab: 450MPA

13: Persistive ua haujlwm siab: {330-380 mpa mpa

14: Kev Txiav Txim Siab: ± 0. 1 hli

15: Italian ESA kev ua haujlwm system thiab Italian Pegasus cad-cam teeb duab software

16: Japanese Yaskawa servo lub cev muaj zog hauv x / y / z / c / a axis

17: Nyiv Japanesyaskawa maub los tswj hwm cov koos pij tawj thiab kev txhawb nqa online chaw taws teeb

18: Tus neeg hu, Breaker, Intermediaterelay, powerswitch (SiemensorScnecneid); Taiwan Savch Inverter 19: Rooj tilting: 0 degree rau 85 degree

2 {0}: Pom Hniav Taub Hau Taub Hau Tilting: 0 Qib rau 90 degree

21: taub hau sib hloov: ib qib zuj zus los ntawm {1}} degree rau 360 degree

22: Taiwan Hinwin linearguodefefefefefefefefefefefefefefefefefefefefefefefefefefefefefefaining inx / Yaxis; Ballscrew inzaxis 23: Mainmotorwith 23: Mainmotorwith Inverter Confettror

Cov Haujlwm:

1:45 degree txiav

2: ncaj txiav

3: Drilling thiab milling rau oval thiab puag ncig

4: Ncaj L Cov Qauv thiab Untrafaight L Daim Ntawv Countertop Txiav

5: Round Sharph lossis Arc lossis Cov Qauv Txheej Txheem Txiav

6: Muaj kev sib cav

7: Nrog thaij duab thaij duab

8: Waterjet

1. Txhua zaus txiav cov peev xwm, tuaj yeem txiav ib qho dav hlau nkhaus.

2. Cov qauv tshwj xeeb txhawb nqa qauv ua rau lub taub hau txiav tsis co ntawm kev kub ceev. Tag nrho lub tshuab khiav zoo, nrog nrawm txiav ceev thiab siab machining qhov tseeb.

3. Tus ntsia hlau qws thiab cov lus qhia kev siv Rail siv yog muab los ntawm cov neeg tsim khoom German zoo. Tus x thiab y axes yog lubricated los ntawm cov roj tseem ceeb ntawm lub tshuab cnc sib xyaw ua ke ntawm lub neej pabcuam ntawm cov ntsia hlau qws cob qhia kev kub siab tshaj plaws.

4. Lub taub hau txiav yog nruab nrog txhim khu

5. Cov qauv xuab zeb valve, cov qauv yooj yim, smoother xuab zeb txaus, kho kom yooj yim dua, thiab tuaj yeem tiv thaiv dej.

6. Txhua qhov chaw tiv thaiv stainless hlau, plua plav, dej ua, xeb pov thawj, tiv thaiv corrosion, yooj yim los ntxuav nrog dej.

7. Yongda YD series cnc dej txiav platform muaj ob hom qauv: Homilode hom thiab Gantry hom. Cnc maub los muaj ob hom: stepping system thiab ac servo system.

8. Compound pom hniav txiav, ntau dua txoj kev txiav tau zoo dua; Txo cov khoom siv tau txais.

1, lub tshuab tuaj yeem txiav cov duab sib txawv

Kev txiav pob zeb yog cov txheej txheem feem ntau siv hauv kev kho kom zoo nkauj. Feem ntau siv zeb pob zeb tej tshuab. POB ZEB CHOJ Qhov kev txiav no feem ntau yog feem ntau ncaj-kab txiav. Nws yog qhov nyuaj rau txiav curves, qhov lossis luv ncaj ncaj ntawm cov pob zeb. Cov dej dav hlau pom kev siv lub choj txiav kom txiav cov kab ncaj nraim, thiab tom qab ntawd siv cov dej nyab feem mus txiav cov kab nkhaus, yog li kom cov qauv dej ncaj qha.

2, lub tshuab nrog kev txuag siab

Dej dav hlau yog tsim nyog rau txiav cov ntaub ntawv tsis yog xim hlau, tshwj xeeb tshaj yog nyob hauv pob zeb, iav thiab lwm yam khoom kho kom zoo nkauj. Tab sis kev txiav ceev cov dej Dav Hlau Hlau tsis ceev heev. Yog li no, siv cov choj dej tsis txhob txiav cov dej cov khoom kom txiav, thiab siv rab riam dej ncaj qha tuaj yeem txhim kho qhov txiav ceev. Ua ke cov dej dav hlau cutter thiab tus choj cutter ntawm tib lub tshuab tuaj yeem txuag tau lub sijhawm sib txawv thiab txav chaw tom qab txav ntawm cov khoom sib txawv, thiab cov khoom sib txawv yog thaum thauj khoom. Nws yog cov khoom siv ua tau zoo pob zeb heev thiab ua cov khoom ua haujlwm.

3, lub tshuab yooj yim hauv kev tsim thiab kev ua haujlwm

Vim tias nws yog nyob tib lub tshuab txiav sib txawv thiab cov kev tswj hwm zauv, cov txheej txheem sib txawv yog yooj yim dua li cov cav txiav thiab dej dav hlau txiav tshuab. Nyob rau tib lub sijhawm, hloov ntawm ob txoj kev txiav kuj tseem siv zog, thiab tso cai rau tus neeg teb xov tooj ua lwm yam haujlwm lossis saib xyuas ntau lub sijhawm, uas txhim kho kev ua tau zoo ntawm cov lag luam.

Kom suav cov, lub tshuab ua ke rau tib cov khoom siv. Qhov ob txiav hom muab ua si rau lawv txoj kev ua kom muaj zog, ua rau txhua tus tsis muaj zog, thiab ua kom muaj kev sib tsoo tag nrho

Lub Sedjet integation ua ke ntawm kev ua tiav ntawm cov kav hlau siab steel. Cov kab piping muaj nyob rau hauv lub zog dual-Chamber lub zog saw, muab kev tiv thaiv zoo thiab tswj ntawm txhua kab. Qhov system no txhim kho lub neej thiab kev ntseeg tau ntawm HP siab.

Lub pob zeb CNC Soundjet & choj pom muaj txhua yam thev naus laus zis siv tau, cov lus tsis sib xws nrog 85 degree, ntawm-board koob yees duab, hniav presetting thiab pob zeb tuab sojntsuam (kev xaiv).

Muaj zog txaus los txiav quartzite nrog yooj yim, tseem muaj ntau yam txaus rau kev txiav porcelain nrog precision, lub CNC SUJET yog qhov kawg countertop tej tshuab.
