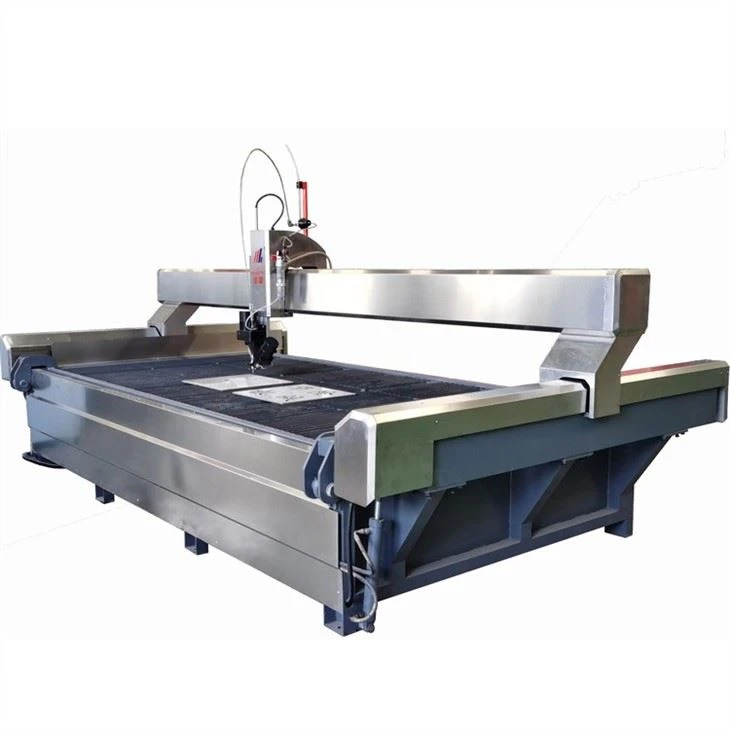

Hualong Waterjets muaj zog npaum li cas?
Waterjets siv lub nozzles los nqa lub siab, cov kwj deg zoo ntawm cov dej thiab garnet los txiav cov khoom. Lub garnet feem ntau muaj Moh hardness ntawm 6.5 txog 7.5. Qhov no txhais tau tias nws tuaj yeem txiav los ntawm cov ntaub ntawv softer dua li garnet.
Abrasive waterjets tuaj yeem txiav ntau cov ntaub ntawv sib txawv, xws li hlau, titanium, iav, hardened steel, ceramics, yas, pob zeb, thiab roj hmab.
Yuav ua li cas Waterjets ua kom muaj zog txiav kwj
High-pressure twj tso kua mis muab cov dej rau lub waterjet nozzle. Yog vim li cas cov dej ntws muaj zog yog vim tias nws ntws tawm ntawm lub qhov dej dav hlau ntawm qhov siab tshaj plaws, lub aerodynamic luag ua ib thaj tsam rau cov kwj deg.
Qhov no ua rau dej qeeb thiab ua rau nws kis tau. Nyob rau hauv cov dej sib kis no yog cov tub ntxhais uas xa cov thawj lub zog thaum nws hits lub hard nto koj txiav.
Qhov ntev ntawm cov tub ntxhais yog nyob ntawm seb lub nozzle twg koj siv thiab ntws cov xwm txheej. Yog tias koj siv lub nozzle tsim tsis zoo, nws tuaj yeem ua rau cov dej ntws tsis zoo uas ua rau cov kwj deg tawg tom qab tawm hauv lub nozzle. Nws yog ib qho tseem ceeb uas yuav tsum tau siv cov dej dav hlau zoo rau tag nrho koj cov ntawv txiav.
Raws li cov dej mus dhau lub siab lub khob hliav qab, nws tawg mus rau hauv nyias cov tee dej. Cov tee no tseem muaj zog thiab tuaj yeem tsim tau, tab sis lawv yuav tsis meej. Piv txwv li, cov tee dej tseem yuav muaj txiaj ntsig zoo rau kev ua lag luam tu thaum tsis tshua muaj siab.
TECHNICAL DATA | |||
Qauv No. | HLW-3020 | HLW-4020 | |
Chaw ua haujlwm | cm | 300*200 | 400*200 |
X-axis stroke | mm | 3200 | 4000 |
Y-axis stroke | mm | 2000 | 2000 |
Z-axis stroke | mm | 80-130 | 80-130 |
Max. Lub kaum sab xis ntawm C axis tig | ntxiv /- 360degree | ntxiv /- 360degree | |
Max. lub kaum sab xis ntawm A axis viav vias | ntxiv /- 60degree | ntxiv /- 60degree | |
Txiav raug | mm | ntxiv /{0}}.1 | ntxiv /{0}}.1 |
Rov ua qhov tseeb | mm | ntxiv /{0}}.05 | ntxiv /{0}}.05 |
Hla ceev | hli/min | 5000/15000 | 5000/15000 |
Main lub cev muaj zog | kws | 37 | 37 |
Qhov ntev (L x W x H) | cm | 443x278x220 | 494x280x222 |
Cov duab nthuav dav ntawm CNC Dej dav hlau Cutter
1. Hluav taws xob hlau nplaum Valve
Hom Lub Npe: Yuanhong
Original: Suav teb
Qhia thiab hloov kom zoo dua
2. Servo Tsav
Hom Lub Npe: Weihong
Keeb kwm: Suav teb
Nr ntawm kev hloov pauv: 0-1500 rpm
Tsav X axis txav kom raug thiab reposefully.
3. Laser Sensor
Hom Lub Npe: Weihong
Keeb kwm: Suav teb
Tsis siv neeg scanning precision altimeter muaj nuj nqi, xyuas kom cov riam taub hau nrug ua hauj lwm daim nto tas li.
Rhiav ntawm CNC Waterjet Tej Tshuab
