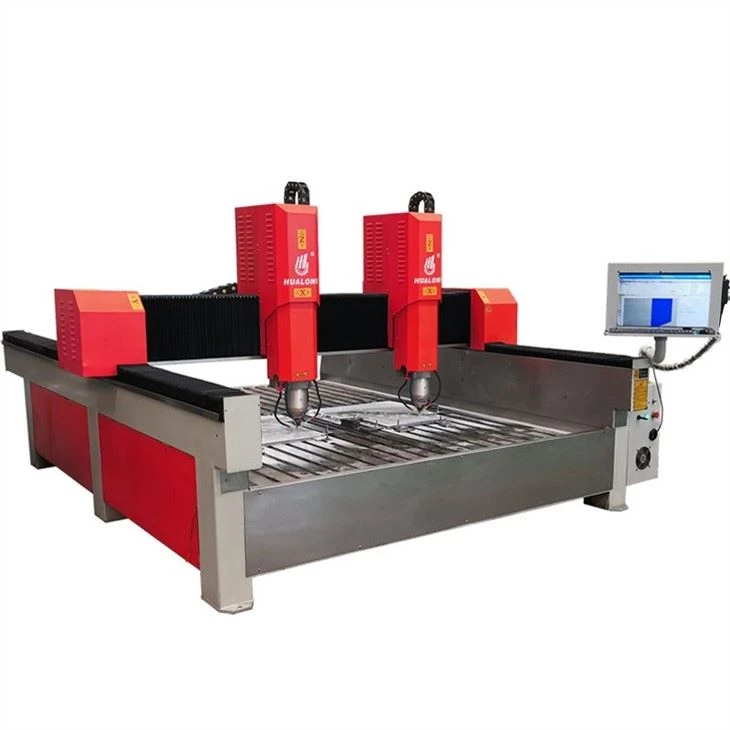

CNC Gravestone Carving Tshuabtseem hu ua CNC marble engraving tshuab, cnc granite engraving tshuab. Nws yog tsuas yog rau pob zeb / granite / marble engraving thiab carving, tam sim no nws yog kev muag khoom ntawm tus nqi zoo tshaj plaws, pob zeb CNC yog nruab nrog CNC cov khoom siv dej txias ntxaiv, uas muaj qhov zoo ntawm cov cua txias, kev kub ceev& raug. Nws yog lub tshuab pob zeb nrov rau pob zeb / marble engraving& carving.

stone carving machine

Lub ntsiab zoo ntawmGravestone Carving Tshuab

1. CNC pob zeb engraving tshuab muaj ib tug hnyav-lub luag hauj lwm steel rooj, heev check, thiab ruaj khov, muaj zog txaus tuav hnyav pob zeb / marble / granite, thiab engraving los yog txiav nws.

2. Pob zeb engraving tshuab muaj CNC cov khoom siv ntawm cov dej txias txias ntxaiv, zoo meej ua haujlwm rau pob zeb.

3. Nws muaj DSP A11 maub los, tes tuav, tsis tas yuav txuas nrog lub computer thiab nws yooj yim rau kev khiav lag luam; Thaum engraving los yog carving pob zeb / marble, koj' yuav pom nws yooj yim heev, esp rau beginners.

4. Txhua qhov tsis muaj thiab cov khoom siv tuaj yeem ua raws li kev ua haujlwm, koj tuaj yeem xaiv cov khoom siv CNC sib txawv rau lub tshuab engraving pob zeb no nrog kev pab los ntawm peb tus thawj tswj kev muag khoom.

TECHNICAL DATA
Qauv No.	HLB 1530-2	HLB 1825-2	HLSD-2030-2	HLSD2520-2
Workbench dimension	150 * 300 cm	180 * 250 cm	200 * 300 cm	250 * 200 cm
Tus naj npawb ntawm lub taub hau ua haujlwm	2 pcs
Gantry qhov siab	450 hli
Pub qhov siab	≤ 400 hli (Customizable)
Spindle zog	3.7 / 4.5 / 5.5 kw (customizable)
Spindle rotating ceev	6000-24000 rpm / min
Max. txav ceev	30000mm / min
Txoj kab uas hla ntawm engraving cuab yeej	Ø 1-16 mm
Positioning precision	+/- 0.03 hli
Rov ua dua qhov tseeb	+/- 0.02 hli
txib code	G kod
Tsav tsheb	Kauj ruam / Hybrid servo / Servo (customized)
Txias qhov system	Dej txias
Lub zog tag nrho	15 kwv
Qhov hnyav tag nrho	2200 Kg
Qhov ntev (L x W x H)	400 x 230 x 220 cm		520 x 230 x 220 cm

Daim ntawv thov

Pob zeb cnc carving tshuab yog dav siv nyob rau hauv pob zeb kev lag luam, xws li ntuj marble, granite, dag pob zeb, tombstones, milepost, ceramic pobzeb, iav, milepost thiab lwm yam ntaub ntawv.

applicatin of stone engraving machine

2D carving machine

Cov duab ntxaws

CNC Control system of stone carving machine

Tswj system - CNC

Brand: NcStudio

Original: Suav teb

NCstudio CNC system, cov keyboard ua haujlwm, lub vijtsam loj, yooj yim rau kev khiav lag luam thiab tswj, ntau tus neeg tsim qauv

Water-cooling Spindle of stone carving machine

Dej-txias Spindle

Lub hwj chim: 3.5 / 4.5 / 5.5kw (Customizable)

Rotating ceev: 6000-24000 rpm / min

Kev hloov pauv dej txias ntxaiv nrog cov cuab yeej siv hluav taws xob ceev ceev, ua suab nrov, cov lus teb ceev ceev, kev sib hloov ceev thiab kev ruaj ntseg ruaj ntseg rau kev ua haujlwm ntev.

Guide Rail of stone carving machine

Qhia Rail, Pob Ntsia Hlau

Keeb kwm: Taiwan, Suav

Cov lus qhia zoo tshaj plaws, cov ntsia hlau, khib siv rau ntawm X, Y thiab Z axises muab cov lus tsa suab thiab nruj tswj kom meej thiab zoo engraving.

Hand Wheel of stone carving machine
