1. Lub Tuam Txhab Taw Qhia
Fujian Xeev Hualong Machinery yog nrog 30 xyoo hauv kev tsim cov chaw txua txiag zeb mining tshuab, pob zeb thaiv cutter, CNC choj pom, CNC waterjet, pob zebe polishing tshuab thiab lwm yam Peb muaj 76 patents, thiab tau txais ISO9001, ISO14001 thiab CE daim ntawv pov thawj. Peb lub tuam txhab yog nrog 300 tus neeg ua haujlwm thiab 10 hectre cheeb tsam rau kev cob qhia.
2. Tshuab Taw Qhia

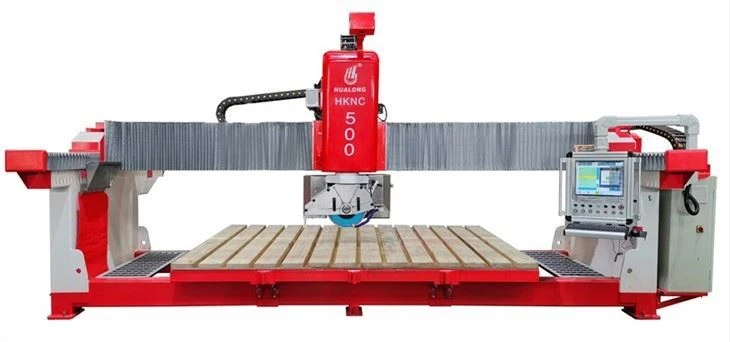

HKNC-500 5 Axis CNC choj pom yog cov kev daws teeb meem zoo los txiav cov chav ua noj countertop thiab saib iav heev sab saum toj ntawm cov plooj (porcelain, quartz, marble, granite thiab lwm yam) Tshuab txais 19 nti industrial computer screen los ntawm ltalis thiab Italian imported ESA thawj servo motors rau 4 interpolated axes (X , Y, Z, C) thiab tsav tsheb thiab tseem siv thawj Italian Pegasus hom software. Mcahine yog nrog cov qauv monobloc yog li nws yooj yim rau kev thauj khoom thiab tshem tawm thiab teeb tsa. Lub caij no, lub tshuab tau nruab nrog lub computer Italian los txhawb kev sib txuas hauv online. Cov ncauj lus kom ntxaws configuration rau tshuab yog teev hauv qab no:
1) Italian ESA kev ua haujlwm thiab Italian Pegasus CAD CAM teeb duab software
2) Italian ESA servo lub cev muaj zog, ESA Tsav Tsheb, thiab ESA Controller
3) Taiwan Hiwin Linear qhia hauv X thiab Y axis thiab Hiwin pob ntsia hlau hauv Z axis
4) Nrog lub koob yees duab duab digitizer rau slab nesting, positioning thiab typesetting kom optimize slab pab thiab kom tsis txhob txiav pov tseg
5) Nrog lub tshuab nqus tsev lifter rau txav tej daim
6) Tshuab tuaj yeem ua mitering txiav, qhov drilling, dab dej milling, polygon thiab nkhaus profileing txiav, ncaj thiab tsis ncaj L puab txiav, puag ncig lossis arc txiav thiab lwm yam.
7) Lub rooj loj: 3500 * 2100mm
8) Hniav txoj kab uas hla: 400-500mm
9) Lub cev muaj zog: 11kw
10) Tag nrho lub zog: 18kw
11) Max. lifting stroke: 250 hli
12) Max. Txiav thickness: 140mm
13) Nyhav: 5800kgs
14) Loj: 5700 * 3260 * 2765mm
3. Cov neeg siv khoom txiav daim ntawv thov scenario
