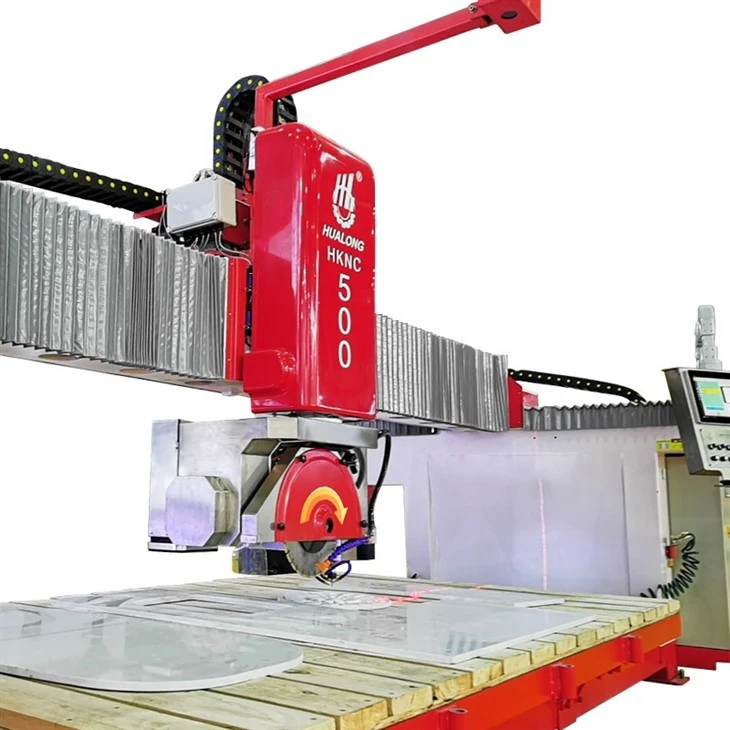

HKNC{{0}} yog ib qho kev cuam tshuam tag nrho 5-axis choj pom. Lub taub hau tig 0 degree -360 degree interpolate nrog cov hniav tilting 0 degree rau 90 degree . Nrog cov haujlwm muaj zog.Nws tuaj yeem ua haujlwm yuav luag txhua txoj haujlwm ntawm lub Hoobkas countertops.
Nws yooj yim txiav cov dab dej, miters, kab ncaj, nkhaus, polygons, profiles, thiab lwm yam. Muaj peev xwm txiav txhua yam duab thiab txhua qhov loj. Nws tseem tuaj yeem txiav tawm lub dab dej thiab lub qhov dej los ntawm kev siv lub tshuab milling.
Siab heevItalian Pegasus CNC softwarenrog ib qho yooj yim-rau-siv touchscreen interface. Programming yog ib qho yooj yim heev. Xaiv cov duab preset thiab nkag rau qhov ntev. Lub software yuav cia li simplify qhov project txiav.
Ø Ntshuam thiab siv DXF cov ntaub ntawv (tus qauv CAD cov ntaub ntawv).
Ø Tsis tas yuav muaj kev txawj tshwj xeeb. Kawm nws hauv lub sijhawm luv luv. Lub tshuab tuaj yeem ua haujlwm yam tsis muaj cov kws tshaj lij.
|
TECHNICAL DATA FOR HKNC-500
|
||
|
Txoj kab uas hla ntawm saw hniav
|
ø400-ø500
|
mm
|
|
Dimension ntawm kev ua haujlwm platform
|
3500x2100
|
mm
|
|
Max. txiav thickness
|
120
|
mm
|
|
Max. lifting stroke
|
300
|
mm
|
|
Max. nqa qhov hnyav los ntawm lub khob sunction
|
200
|
kg
|
|
Lub zog ntawm lub cev muaj zog
|
18.8
|
kws
|
|
Kev siv dej
|
2
|
m3/h
|
|
Qhov hnyav tag nrho
|
5400
|
kg
|
|
Qhov Loj (L x W x H)
|
5700x3260x2765
|
mm
|
Tshuab tshuab
Thaum cov duab tau teem rau ntawm lub slab, qhov kev txiav ua ntu tuaj yeem ua kom zoo dua. Nyob rau theem no hte overlapping txiav raug tshem tawm, kev sib tsoo cov txiav yog txiav, cov tsis tiav yog ua tiav nrog ib tug so machining, thiab txiav txiav yog optimized kom txo tau lub taub hau rotations thiab lub ceev ceev mus txawv tebchaws.
Cov neeg siv khoom Rhiav
Peb lub Hoobkas
Ntim & Chaw thau khoom
|
TECHNICAL DATA FOR HKNC-500 |
||
|
Txoj kab uas hla ntawm saw hniav |
ø400-ø500 |
mm |
|
Dimension ntawm kev ua haujlwm platform |
3300x2000 |
mm |
|
Max. txiav ntev |
3300 |
mm |
|
Max. txiav thickness |
140 |
mm |
|
Max. lifting stroke |
250 |
mm |
|
Max. nqa qhov hnyav los ntawm lub khob sunction |
200 |
kg |
|
Lub zog ntawm lub cev muaj zog |
11 |
kws |
|
Lub zog ntawm cutter ncej reciproctating lub cev muaj zog |
2 |
kws |
|
Lub zog ntawm crossbeam hloov lub cev muaj zog |
1.1 |
kws |
|
Lub zog ntawm qhov chaw nres tsheb hydraulic |
2.2 |
kws |
|
Lub zog ntawm lifting motor |
0.85 |
kws |
|
Lub zog tag nrho |
16 |
kws |
|
Kev siv dej |
2 |
m3/h |
|
Qhov hnyav tag nrho |
5400 |
kg |
|
Qhov Loj (L x W x H) |
5700x3260x2765 |
mm |
