Product Description
Sintered Pob Zeb Choj Pom
Hualong HLSQ-350yog anmonoblockTsis Siv Neeg Choj Pob Zeb Txiav Tshuabnrog Siemens PLC maub los. Nws muaj interpolated axes, 0-90 degree rotating lub taub hau thiab ib lub rooj tilting, yog programmable thiab sutable rau txiav slabs ntawm sintered pob zeb, grainte, marble, quartz thiab lwm yam ntuj los yog engineered pob zeb kom loj. Tag nrho warranty muab.
Rooj Tilt: 0-85 degree
Hlau Tank - xaiv tau los sau cov dej
|
TECHNICAL DATA HLSQ-350 |
|||
|
Kev teeb tsa |
Txoj kab uas hla ntawm saw hniav |
mm |
Φ300 - Φ350 |
|
Dimension ntawm kev ua haujlwm platform |
mm |
3200 x 2000 |
|
|
Lub zog ntawm lub cev muaj zog |
kws |
15 |
|
|
Lub zog ntawm cov cuab yeej swb reciprocating lub cev muaj zog |
kws |
1.1 |
|
|
Lub zog ntawm crossbeam hloov lub cev muaj zog |
kws |
1.5 |
|
|
Lub zog ntawm qhov chaw nres tsheb hydraulic |
kws |
2.2 |
|
|
Lub zog ntawm of elevator motor |
kws |
1.5 |
|
|
Lub zog tag nrho |
kws |
21.3 |
|
|
Main Performance Parameters |
Max. ntev ntawm kab rov tav txiav |
mm |
3200 |
|
Max. thickness ntawm txiav |
mm |
80 |
|
|
Kev siv dej |
m3/h |
2 |
|
|
Kev ntsuas |
Qhov hnyav tag nrho |
kg |
4000 |
|
Qhov Loj (L x W x H) |
cm |
5400x2200x2200 |
|
Lub ntsiab nta
1) Monoblock qauv rau kev thauj mus los yooj yim, kev teeb tsa thiab tsis muaj lub hauv paus xav tau.
2) Siemens, Schneider hluav taws xob thiab lwm yam khoom siv zoo xws li Sanch inverter tau txais yuav.
3) 0 degree - 90 degree automtaic taub hau tig .
4) Hniav tuaj yeem qaij 45 degree automtically rau chamfering txiav.
5) Tsis siv neeg hla hla ntau zaus kom yooj yim los ntawm kev thawb ib lub pob.
6) Kev txiav txiav muaj rau kev ua haujlwm yooj yim
7) Worktable tuaj yeem qaij 0-85 degree, yooj yim rau slab loading.
Daim Ntawv Qhia Tawm
Original: Suav teb
Cov khoom lag luam zoo siv rau ntawm crossbeam (X axis) thiab carling (Y axis) kom lav qhov kev txiav zoo meej thiab lub neej ntev.
Tswj qhov system
Hom Lub Npe: Siemens
Siv cov kev tswj hwm PLC siab heev nrog lub vijtsam kov kom ua tiav ntau txoj hauv kev, suav nrog kev siv phau ntawv lossis PC ua haujlwm rau cov haujlwm muaj zog, uas muaj kev tswj hwm tus phooj ywg thiab ntse.

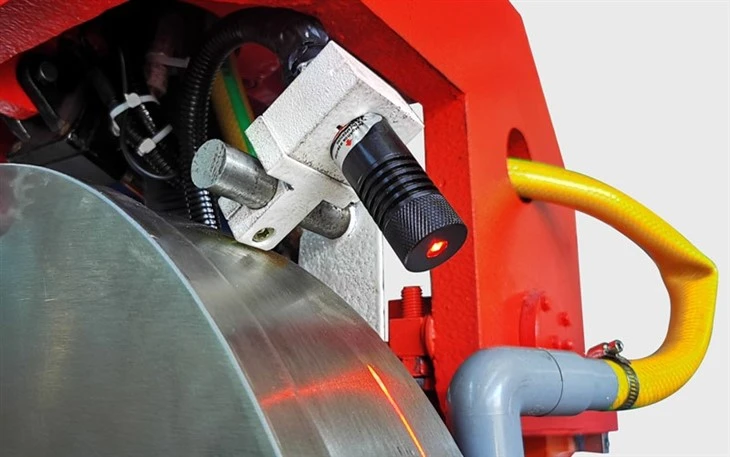

Laser Reticule Apparatus
Keeb kwm: Suav teb
Laser kuaj thiab calibration ntsuas los pab nyob rau hauv lineup qhov txiav thaum pib ntawm kev ua.
Hlau Tank
Xaiv tau rau kev sau dej rau kev rov ua dua tshiab
Slab txiav tshuab tau dhau los ua cov cuab yeej tseem ceeb hauv ntau qhov kev lag luam, hloov pauv txoj kev peb txheej txheem cov ntaub ntawv. Cov tshuab no tau ua pov thawj tias muaj txiaj ntsig zoo thiab txhim khu kev qha, muab cov kev txiav txiav uas ua tau raws li cov qauv siab tshaj plaws. Niaj hnub no, peb yuav delve rau hauv qhov tseem ceeb ntawm slab txiav tshuab nqi, tshawb xyuas lawv qhov tseem ceeb thiab cuam tshuam rau kev lag luam.
Thaum xav txog lus Askiv lub ntsiab lus ntawm slab txiav tshuab nqi, peb pom peb tus kheej xav txog tus nqi uas lawv coj los rau peb cov haujlwm. Nws yog ib qho tseem ceeb kom nkag siab tias tus nqi ntawm cov tshuab no mus dhau ntawm tus lej xwb. Hloov chaw, nws sawv cev rau kev nqis peev hauv kev tsim khoom, raug, thiab thaum kawg, kev vam meej.
Lub ntsiab lus tseem ceeb uas peb xav hais txog yog qhov tseem ceeb ntawm kev nrhiav qhov sib npaug ntawm qhov zoo thiab kev them taus. Txawm hais tias nws yuav ntxias tau xaiv qhov kev xaiv pheej yig tshaj plaws uas muaj, nws yog qhov tseem ceeb uas yuav tsum xav txog qhov cuam tshuam mus ntev. Kev nqis peev hauv lub tshuab ua kom zoo slab txiav ua kom muaj kev ruaj ntseg, kev cia siab, thiab kev ua haujlwm zoo, thaum kawg ua rau muaj kev tsim khoom ntau ntxiv thiab txo qis sijhawm.
Ntxiv mus, lub tshuab ua tau zoo feem ntau tuaj nrog cov yam ntxwv ntxiv thiab cov thev naus laus zis siab heev, txhim kho nws cov txiaj ntsig thiab ntau yam. Cov txiaj ntsig ntxiv no tuaj yeem cuam tshuam rau kev ua haujlwm tag nrho, tso cai rau cov lag luam los daws cov haujlwm ntau dua thiab ua tau raws li cov neeg siv khoom xav tau zoo dua.
Txawm li cas los xij, nws tseem ceeb sib npaug kom tsis txhob siv nyiaj ntau dhau ntawm cov yam ntxwv tsis tsim nyog uas yuav tsis ua raws li koj cov kev xav tau tshwj xeeb. Ua tib zoo tshawb fawb thiab nkag siab txog koj cov kev xav tau yuav pab koj txiav txim siab paub, kom ntseeg tau tias koj nqis peev hauv lub tshuab txiav slab uas haum rau koj txoj kev lag luam.
Hauv kev xaus, lus Askiv lub ntsiab lus ntawm slab txiav tshuab nqi revolves nyob ib ncig ntawm qhov sib npaug ntawm qhov zoo thiab pheej yig. Los ntawm kev ua tib zoo xav txog cov txiaj ntsig mus sij hawm ntev thiab ua kom haum rau koj cov kev xav tau tshwj xeeb, koj tuaj yeem ua qhov kev nqis peev zoo uas yuav cuam tshuam rau koj txoj kev lag luam. Nco ntsoov, nws tsis yog hais txog tus nqi xwb; nws yog hais txog tus nqi thiab muaj peev xwm cov tshuab no coj los rau koj cov haujlwm. Yog li, siv koj lub sijhawm, tshawb xyuas koj cov kev xaiv, thiab xaiv kom zoo.
