Khoom Taw qhia

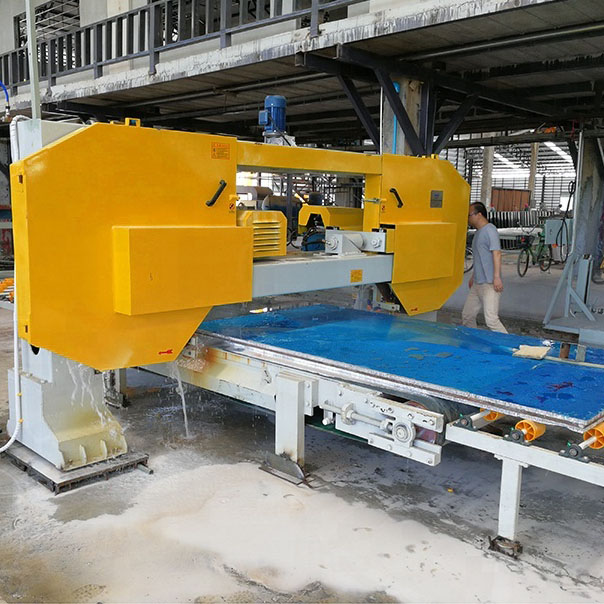

Lub tshuab no yog faib cov slab rau hauv cov vuas nyias, dav siv los ua cov pobzeb super-thin marble composited. Lub worktable tuaj yeem pub tau txais thiab nws qhov ceev yog adjustable thiab hloov tau.
|
Technical Data
|
|||
|
Qauv No.
|
HLDP-1600
|
HLDP-1800
|
|
|
Max. ua haujlwm dav
|
mm
|
1650
|
1850
|
|
Max. ua hauj lwm thickness
|
mm
|
100
|
100
|
|
Max. ua hauj lwm ntev
|
mm
|
3050
|
3100
|
|
Txiav ceev
|
hli/min
|
0-80
|
0-60
|
|
Kev siv dej
|
m3/h
|
1
|
1
|
|
Lub zog tag nrho
|
kws
|
11.92
|
14
|
|
Qhov hnyav tag nrho
|
kg
|
4500
|
5500
|
|
Qhov ntev (L x W x H)
|
cm
|
350(390)x580x168
|
370(410)x600x178
|
|
TECHNICAL DATA FOR HKNC-500 |
||
|
Txoj kab uas hla ntawm saw hniav |
ø400-ø500 |
mm |
|
Dimension ntawm kev ua haujlwm platform |
3300x2000 |
mm |
|
Max. txiav ntev |
3300 |
mm |
|
Max. txiav thickness |
140 |
mm |
|
Max. lifting stroke |
250 |
mm |
|
Max. nqa qhov hnyav los ntawm lub khob sunction |
200 |
kg |
|
Lub zog ntawm lub cev muaj zog |
11 |
kws |
|
Lub zog ntawm cutter ncej reciproctating lub cev muaj zog |
2 |
kws |
|
Lub zog ntawm crossbeam hloov lub cev muaj zog |
1.1 |
kws |
|
Lub zog ntawm qhov chaw nres tsheb hydraulic |
2.2 |
kws |
|
Lub zog ntawm lifting motor |
0.85 |
kws |
|
Lub zog tag nrho |
16 |
kws |
|
Kev siv dej |
2 |
m3/h |
|
Qhov hnyav tag nrho |
5400 |
kg |
|
Qhov Loj (L x W x H) |
5700x3260x2765 |
mm |
Cim npe nrov: marble block splitting tshuab, Suav teb, manufacturers, lwm tus neeg, Hoobkas, nqe, kev muag khoom
