Khoom siv

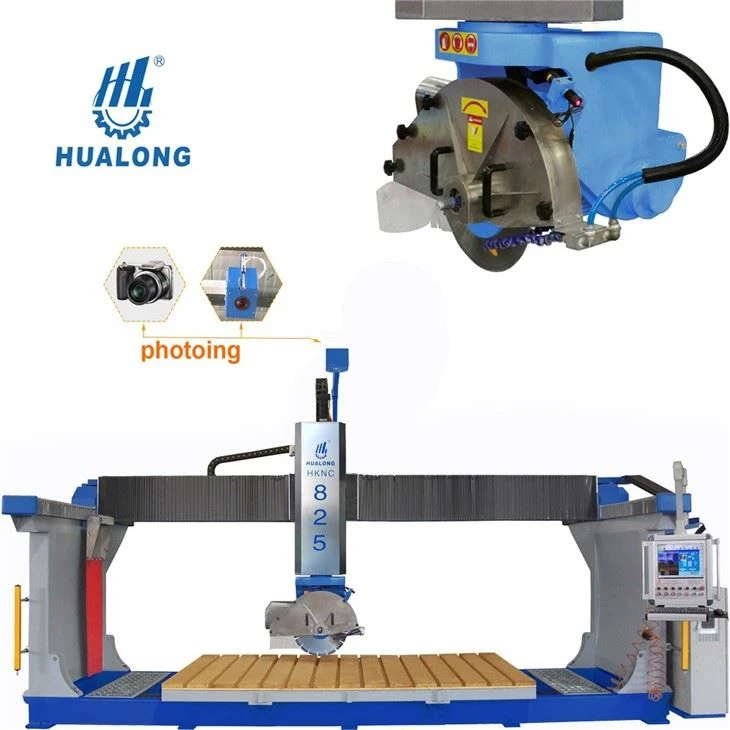

CNC Choj Pob Zeb Txiav thiab Milling Tshuab HKNC-825nrog 5 axis linkage tswj, tuaj yeem siv qhov sib txawv ntawm qhov sib txawv ntawm qhov chaw ua haujlwm, profileing, xws li chav ua noj countertop, chav dej saib iav heev countertop, tombstone, kos duab kho kom zoo nkauj slab & pob zeb sculpture ...

TECHNICAL DATA of HKNC-825
Kev teeb tsa	Txoj kab uas hla ntawm saw hniav	mm	Φ400 - Φ800
	Dimension ntawm kev ua haujlwm platform	mm	3500 x 2100
	Lub zog ntawm lub cev muaj zog	kws	22
	Lub zog ntawm cov cuab yeej swb reciprocating lub cev muaj zog	kws	1.15
	Lub zog ntawm crossbeam hloov lub cev muaj zog	kws	1.15
	Lub zog ntawm qhov chaw nres tsheb hydraulic	kws	2.2
	Lub zog ntawm of elevator motor	kws	0.85
	Lub zog tag nrho	kws	27.35
Main Performance Parameters	Max. ntev ntawm kab rov tav txiav	mm	3500
	Max. thickness ntawm txiav	mm	290
	Max. lifting ncig ntawm cutter	mm	650
	Kev siv dej	m3/h	2
Kev ntsuas	Qhov hnyav tag nrho	kws	6500
Kev ntsuas	Qhov Loj (L x W x H)	cm	6800x3400x3900

Lub ntsiab nta

1) Tag nrho 5 axis interpolation
2) Tsis siv neeg 0 degree rau 360 degree taub hau tig thiab 0 degree -90 degree hniav qaij.
3) Digital brushless servo motors los ntawm ltalis tsim ib tug txhim khu kev qha tswj hwj chim rau 5 axises 'lub zog.
4) Kev tshaj lij CNC system thiab software los ntawm ltalis ua haujlwm ntse thiab yooj yim.
5) Muab fuctions ntawm carving, milling, txiav, drilling rau hauv ib qho organic tag nrho rau kev ua haujlwm nyuaj.
6) Crossbeam thiab carling txais yuav Taiwan's Hiwin linear phau ntawv qhia txav, uas ua kom muaj kev txiav txim siab siab thiab lub neej ntev.
7) Lub koob yees duab nyiaj siv ua haujlwm rau kev yees duab slab thiab txiav layout npaj, tsis txhob slab tsis xws luag.

Daim Ntawv Qhia Tawm

Brand: Hiwin
Original: Taiwan, Suav teb

Cov khoom lag luam nto moo, zoo tshaj plaws siv rau crossbeam thiab carling rau kev ua tau zoo thiab lub neej ntev.

Tswj qhov system

Siv Italian CNC Esa tswj qhov system nrog 19 "kov lub vijtsam, kom ua tiav ntau txoj hauv kev, suav nrog kev siv phau ntawv lossis PC ua haujlwm rau kev ua haujlwm muaj zog

Tool Measuring System (Yeem)

Hniav txoj kab uas hla los yog cov cuab yeej ntev presetter pab kom lub tshuab ua cov pob zeb kom raug.

Safeguard Door (Yeem)

Ua haujlwm los ntawm infrared induction kom ntseeg tau tias kev ua haujlwm muaj kev nyab xeeb thaum txhua theem mahining.
