5 Axis Shaping Tshuab

Tshiab Choj Pob zeb txiav tshuab siv Italian CNC system hom ESA thiab Italian software hom Pegasus. 4-axis interpolation ntxiv rau 1-axis hluav taws xob tswj, tuaj yeem txiav ntau yam slabs, xws li granite, marble, quartz thiab lwm yam slabs. Nws teev carving, milling, txiav, drilling, carving hauv ib qho. Rau Complex countertop thiab dab dej tuav.

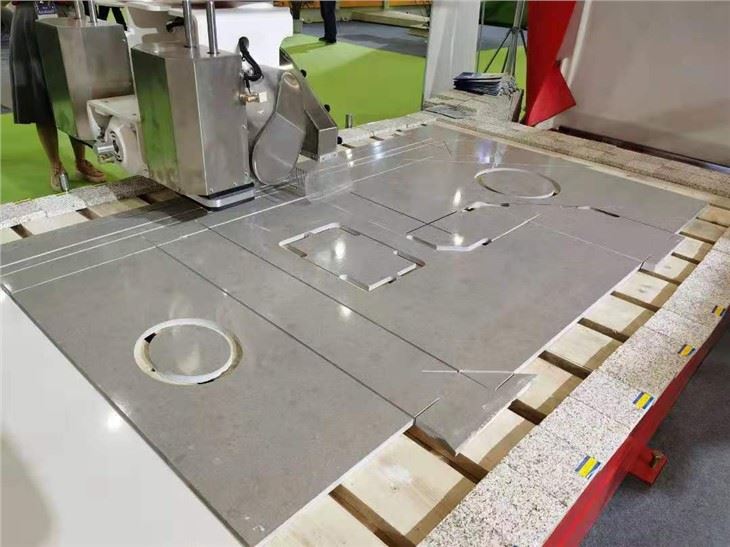

5 Axis Shaping Tshuab nrog Italian system thiab software: HKNC-500

HUALONG HKNC -500 yog 5 Axis CNC pob zeb txiav & milling tshuab nrog cov duab slab thiab built-in nqus lifting muaj nuj nqi, uas combining simplicity nrog ntau tshaj versatility. Nws yog qhov zoo tagnrho rau kev tsim cov khoom sib txawv ntawm marble / granite / quartz / artifical stone khoom xws li chav ua noj saum toj kawg nkaus, vanity tops, thiab lwm yam los ntawm kev pom thiab router me ntsis ua haujlwm ua ke txhawm rau ua kom muaj txiaj ntsig zoo.

CNC machine

head rotating

countertop

Italian system

Cov neeg siv khoom Rhiav

Peb lub Hoobkas

granite slab cutting machine

TECHNICAL DATA FOR HKNC-500
Txoj kab uas hla ntawm saw hniav	ø400-ø500	mm
Dimension ntawm kev ua haujlwm platform	3300x2000	mm
Max. txiav ntev	3300	mm
Max. txiav thickness	140	mm
Max. nqa stroke	250	mm
Max. nqa qhov hnyav los ntawm lub khob sunction	200	kg
Lub zog ntawm lub cev muaj zog	11	kws
Lub zog ntawm cutter ncej reciproctating lub cev muaj zog	2	kws
Lub zog ntawm crossbeam hloov lub cev muaj zog	1.1	kws
Lub zog ntawm qhov chaw nres tsheb hydraulic	2.2	kws
Lub zog ntawm lifting motor	0.85	kws
Lub zog tag nrho	16	kws
Kev siv dej	2	m3/h
Qhov hnyav tag nrho	5400	kg
Qhov Loj (L x W x H)	5700x3260x2765	mm
