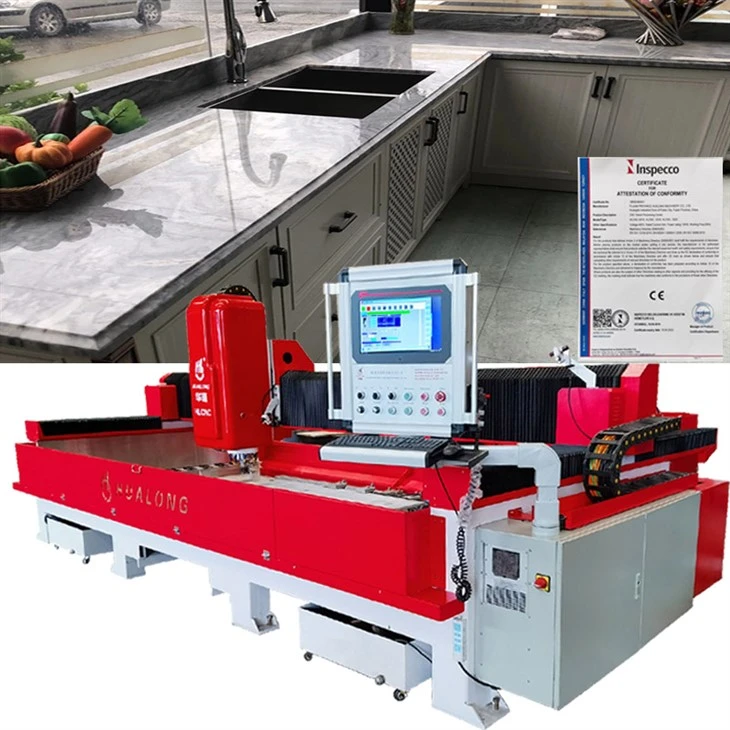

HLCNC-3319
Qhov no 3 axis CNC Stone Processing Center yog CNC milling thiab ntug polishing chaw tsim los rau contouring,
txiav thiab xa nrog peb lub axis interpolated muab cov neeg siv tau muaj peev xwm ntawm ntau yam thiab ua haujlwm nyuaj
kev ua haujlwm uas yuav txwv tsis pub ntau lub tshuab. Nws yog tsim rau kev ua txhua yam ntawm pob zeb slab
coutertop, xws li kithen countertop, da dej countertop, txee countertop, bar txee, rooj, windowsill, qhov rooj
teeb thiab lwm yam. Relief engraving zoo li pob zeb tom qab phab ntsa nyem, European style edging thiab lwm yam yog muaj.
Lub ntsiab nta:
1)Powered los ntawm cov lej tswj kev npaj thiab cuam tshuam nrog peb CAD / CAM software, lawv cov cuab yeej tsis siv neeg tso cai rau
calibration, milling, carving, honing thiab polishing slabs tsis tu ncua thiab txiav hauv ib qho mus.
2) Cov cuab yeej ob sab-kho nrog 20 chaw nres tsheb rau kev hloov cov cuab yeej tsis siv neeg
3) Crossbeam thiab carling txais yuav Taiwan Hiwin linear phau ntawv qhia txav, uas ua kom muaj kev txiav txim siab siab thiab lub neej ntev.
4) X / Y axis nrog plua plav colletor, khaws lub tshuab kom huv, ua kom muaj txiaj ntsig-lub neej ntev
5 )3 axis Yaskawa servo tsav tsheb, kev kub ceev, kev ua haujlwm siab, zoo txiav tsis muaj serrated ripple, du dav hlau hauv qab, nthuav qhia meej.
6)Nrog lub khob nqus tsev vacuum thiab aluminium alloy xauv kom muab ob npaug rau tuav cov khoom ua haujlwm, tsis txhob txav me me
7) Nruab nrog USB interface rau tus neeg teb xov tooj rau kev tawm tswv yim thiab tso tawm qhov kev pab cuam yooj yim.
8)Kev kub ceev thiab suab nrov tsawg.
9) High efficiency thiab tsis tshua muaj nqi ua.
PRODUCT SPECIFICATIONS
|
TECHNICAL DATA |
||||
|
Qauv nab npawb |
HLCNC-3015 |
HLCNC-3319 |
HLCNC-3520 |
|
|
Stroke (X-axis) |
mm |
3040 |
3500 |
3870 |
|
Stroke (Y-axis) |
mm |
1540 |
1950 |
2080 |
|
Stroke (Z-axis) |
mm |
320 |
320 |
320 |
|
Lub cev muaj zog |
kws |
7.5 |
7.5 |
7.5 |
|
Rotating Ceev |
rpm ua |
0-8000 |
0-8000 |
0-8000 |
|
Tool Holder Model |
BT |
40 |
40 |
40 |
|
Tool-store position |
nr |
12 |
20 |
20 |
|
Workbench dimension |
mm |
3000*1500 |
3300*1900 |
3500*2000 |
|
Qhov hnyav tag nrho |
kg |
4000 |
5000 |
5500 |
|
Demension (L x W x H) |
mm |
5530*3200*230 |
||
