3 axis CNC Choj Pob zeb txiav tshuab HSNC-500
Ib qho tshiab choj txiav tshuab los ntawm HSNC -500, nruab nrog Simens PLC tswj qhov system thiab 3 axis interpolation, yog muaj feem xyuam rau kev txiav txhua yam pob zeb slabs loj, xws li granite, marble, quartzite thiab artifical pob zeb slab thiab lwm yam., especailly haum rau kev ua pob zeb countertop nrog dab dej. Kev daws teeb meem kuj ua haujlwm tau.
Lub ntsiab nta
1) Tswj los ntawm Itay CNC system, ua haujlwm tau zoo, raug thiab ruaj khov.
2) Ib-khawm tsis siv neeg ntsug thiab kab rov tav txiav.
3) Txiav lub taub hau muaj los tig 0 degree -360 degree thiab muab tso rau hauv. Hniav tuaj yeem qaij 0-90 degree thiab ua chamfering tau.
4) Nrog kev ua haujlwm drilling & milling, ua kom cov dab dej hloov pauv yooj yim dua thiab sai dua.
5) Lub platform ua haujlwm tuaj yeem tig 0-360 degree, qhov chaw ntawm txhua lub kaum sab xis, thiab qaij 85 degree rau kev pub mis yooj yim.
6) Mono-block tshuab, yooj yim rau lub thawv thauj khoom thiab kev teeb tsa tshuab.
| Hnub tim |
| Lub npe |
Chav tsev |
HSNC-500 |
| Txoj kab uas hla ntawm saw hniav |
mm |
Φ400-Φ500 |
| Qhov ntev ntawm kev ua haujlwm platform |
mm |
3300x2000 |
| Max lenath ntawm kab rov tav txiav |
mm |
3300 |
| Max txiav thickness |
mm |
140 |
| Max lifting stroke |
mm |
250 |
| Lub zog ntawm lub cev muaj zog |
kws |
18.8 |
| Kev siv dej |
m3/h |
2 |
| Dimensions (LXWXH) |
mm |
5700*3260*2765 |
| Qhov hnyav tag nrho |
kg |
5400 |
Ua haujlwm dav hlau, siv esa los ntawm Ltalis
inear Qhia
Hom Tshuaj:Hiwin
Original:Taiwan, Suav
Cov khoom lag luam nto moo, zoo tshaj plaws siv rau crossbeam thiab carling rau siab precision ntawm txiav thiab ntev lifespan.

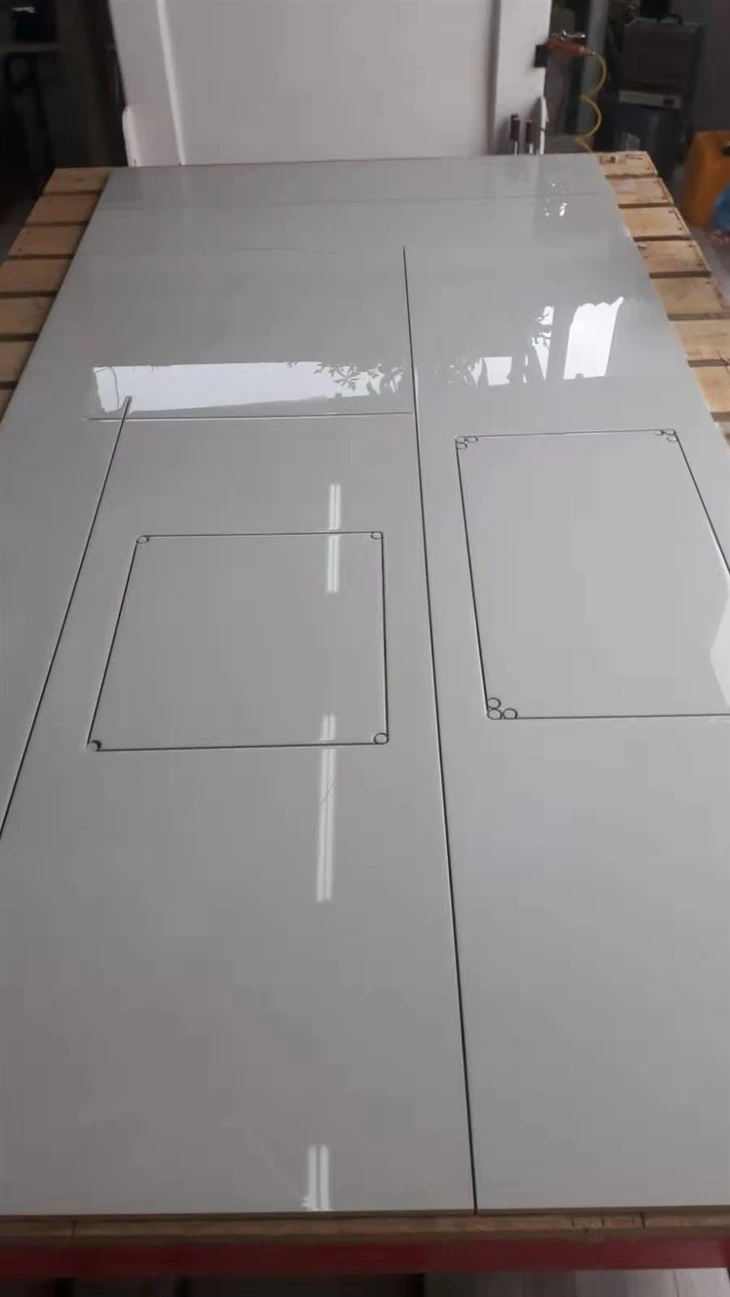

Rau Countertop Kitchen Table Processing
Pob zeb countertops yog ib qho kev xaiv nrov rau ntau tus tswv tsev vim lawv cov kav ntev, elegance, thiab tsis muaj sijhawm txaus. Thaum nws los txog rau kev tsim koj chav ua noj lossis chav dej, kev xaiv ntawm txoj cai pob zeb countertop tuaj yeem ua qhov sib txawv tseem ceeb hauv kev zoo nkauj thiab kev ua haujlwm ntawm qhov chaw. Ib qho tseem ceeb uas yuav tau xav txog thaum xav txog pob zeb countertop tsim yog nws lub ntsiab lus Askiv. Lus Askiv muaj lus nplua nuj uas tso cai rau peb nthuav tawm ntau lub tswv yim thiab tswv yim. Nyob rau hauv rooj plaub ntawm pob zeb countertops, lus Askiv lub ntsiab lus yog hais txog kev txhais thiab kev nkag siab ntawm cov qauv tsim thiab cov yam ntxwv uas ua rau lawv tshwj xeeb. Lub ntsiab lus tseem ceeb rau kev tsom mus rau thaum tshawb txog lus Askiv lub ntsiab lus ntawm pob zeb countertop tsim yog qhov kev mloog kom meej. Txhua yam, los ntawm hom pob zeb siv rau xim, qauv, thiab tiav, pab txhawb rau kev tsim tag nrho. Txhua pob zeb muaj nws tus kheej zoo, xws li granite lub ntuj zoo nkauj, marble luxurious thov, los yog quartz lub durability. Kev nkag siab txog cov yam ntxwv no yog qhov tseem ceeb hauv kev tsim kom muaj kev sib koom ua ke thiab pom kev zoo nkauj. Ntxiv mus, lus Askiv lub ntsiab lus ntawm pob zeb countertop tsim encompasses lub functionality thiab practicality lawv muab. Pob zeb countertops paub txog lawv tiv thaiv tshav kub, khawb, thiab stains, ua rau lawv xaiv zoo tshaj plaws rau chav ua noj lossis chav dej. Tus tsim yuav tsum coj mus rau hauv tus account cov kev xav tau tshwj xeeb thiab kev nyiam ntawm tus tswv tsev, kom ntseeg tau tias lub txee tsis tsuas yog zoo li stunning tab sis kuj ua haujlwm rau nws lub hom phiaj zoo. Hauv kev xaus, thaum xav txog lub pob zeb countertop tsim, nws yog ib qho tseem ceeb rau delve rau hauv nws lub ntsiab lus Askiv. Los ntawm kev nkag siab txog ntau yam qauv tsim thiab cov yam ntxwv, ib tus tuaj yeem tsim qhov chaw uas tsis yog tsuas yog pom kev txaus siab tab sis kuj ua haujlwm thiab ruaj khov. Kev saib xyuas kom meej thiab xav txog ntawm tus tswv tsev cov kev xav tau yog cov ntsiab lus tseem ceeb uas yuav tsum nco ntsoov thoob plaws hauv tus txheej txheem tsim. Yog li, txawm hais tias koj xaiv qhov zoo nkauj ntawm granite, luxuriousness ntawm marble, los yog lub durability ntawm quartz, nco ntsoov tias lus Askiv lub ntsiab lus ntawm pob zeb countertop tsim nyob rau hauv cov kos duab ntawm kev tsim kom muaj kev sib haum xeeb thiab siv tau qhov chaw.
