Italian 5 Axis Sawjet
Nta
* Kev sib txuas tsim ntawm choj pom thiab waterjet ua rau lub tshuab no ua haujlwm ntau. Nws yog cov cuab yeej zoo tagnrho rau ntau hom pob zeb thiab slab txiav, drilling, milling, engraving xav tau.

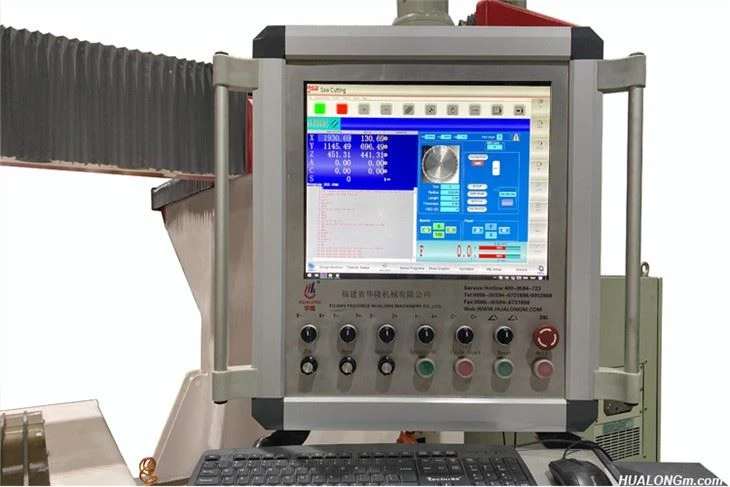

* Italian CNC ESA tswj qhov system & kev ua haujlwm system & tsav tsheb xyuas kom meej thiab du ntawm cov txheej txheem txiav.
* Tus neeg siv-phooj ywg Italian sowftware thiab kov npo txhim kho kev ua haujlwm zoo.
* Kev yees duab Funcion txuag lub zog ua haujlwm thiab zam kev txiav qhov tsis xws luag.
* RTCP cov cuab yeej taw tes taug qab muaj nuj nqi txhim kho machining precision.
Khoom npe | Italian 5 Axis Sawjet |
Tswj txoj kev | CNC |
Hwj chim | 4KW (yeem 7.5KW / 11KW) |
Ua haujlwm voltage | 380V / 220V (kev cai) |
Txoj kev programming | CAD duab input & Manual programming |
Hniav loj | ø 350-ø650mm |
X-axis ua haujlwm stroke | 3500 hli |
Y-axis ua haujlwm stroke | 2100 hli |
Z-axis ua haujlwm stroke | 500 hli |
A-axis ua haujlwm stroke | 360 degree dawb tig |
B-axis ua haujlwm stroke | 0-90 degree |
Lub zog ntawm saw hniav motor | 1-2000mm/min |
Lub zog rau abrasive waterjet | 1-1000mm/min |
Txiav thickness | 100 hli |
Ua precision | 0.3 hli |
Kev siv dej | 11. 4-16.7 l/min |
Zuag qhia tag nrho | 6200x3900x3400mm |
Qhov hnyav | 10000 KG |
Cov neeg siv khoom qhov chaw
Rhiav
FAQ
Q: Koj puas yog cov chaw tsim khoom lossis cov tub luam?
A: Peb yog cov chaw tsim khoom nrog ntau tshaj 30 xyoo.
Q: Thaum twg koj yuav xa kuv daim ntawv xaj?
A: Feem ntau 25-35 hnub tom qab tau txais qhov tso nyiaj, Yog tias ceev, nws tuaj yeem sib tham.
Q: Lub sijhawm warrenty ntev npaum li cas?
A: Ib xyoos, tab sis kev txhawb nqa yuav yog lub neej.
Q: Peb tuaj yeem lav qhov zoo li cas?
A: Peb muaj pab pawg tswj xyuas kev ua haujlwm zoo, thiab lawv yuav ua tib zoo xyuas txhua tus txheej txheem thaum tsim khoom. Thiab tag nrho cov tshuab yuav raug kuaj thiab tshuaj xyuas ua ntej xa khoom.
