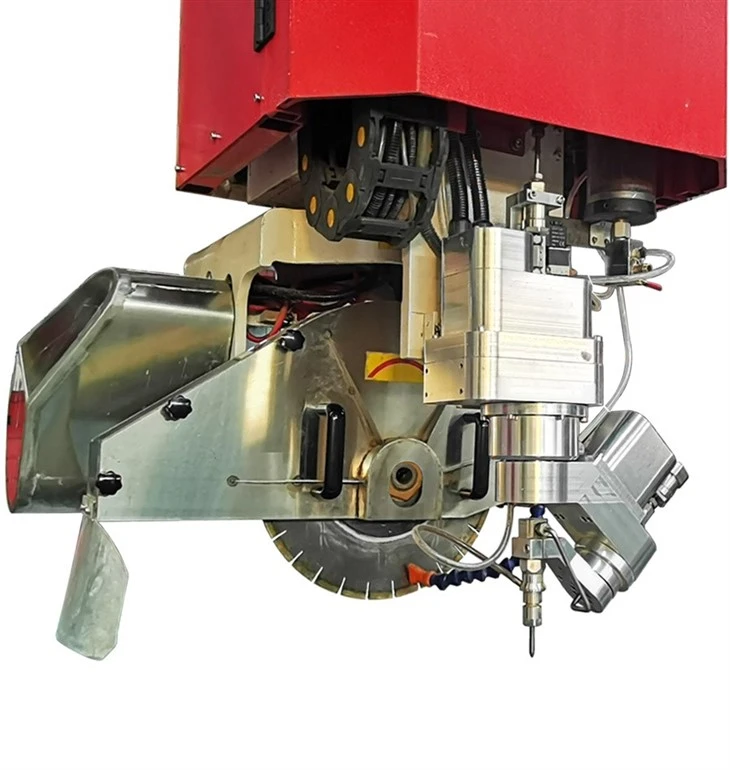

Monobloc 5 axis waterjet choj pom txiav tshuab, nrog kev teeb tsa siab heev Ltalis System thiab Software.Simple tsos tsim & Rugged thiab hnav nruj qauv & High precision kis mechanism & Ncaj sawing muaj nuj nqi ntawm lub viav vias loj & zoo li dej txiav muaj nuj nqi nrog lub viav vias loj
Lub 5-axes choj saw – lub ntsiab lus rau precision, kev ntseeg tau thiab kev lag luam. Ua ke nrog lub autoloader, nruam siv lub rooj thiab ib tug manipulator rau tsis siv neeg tshem tawm ntawm lub tiav lawm workpieces, saws kab los ua ib tug npaum system rau industrial ua. Cov qauv tsim ntawm qhov tso cai rau qhov sib ntxiv ntawm 3 axis lossis 5 axis waterjet lub taub hau. Los ntawm kev sib txuas ntawm tus choj waterjet thiab saw choj, kev tsim khoom ntawm chav ua noj countertops tuaj yeem nce ntxiv.
Tshiab tiam ntawm 5-axes choj pom tag nrho tswj nrog Numeric Control.
Compact thiab yooj yim rau nruab, nws tsis xav tau txhua yam ntawm lub hauv paus yog li nws tuaj yeem rov ua dua yuav luag tam sim ntawd. Lub tshuab yog haum nrog lub taub hau abrasive waterjet txiav lub taub hau uas, los ntawm kev ua hauj lwm ua ke nrog lub pob zeb diamond disk, txhais tau hais tias ntuj pob zeb thiab composite slab txiav yuav automated thaum muaj kev cuam tshuam kev txiav thiab sab hauv cov ces kaum. Lub tshuab yog tsim los rau tag nrho cov chaw soj nstuam uas txiav cov pob zeb ntuj, sib xyaw thiab ceramic slabs.
Thov nias ntawm no los tham nrog kuv ntawm Whatsapp ~
Parameters:
| Zuag qhia tag nrho Dimensions (L x W x H) (mm) | mm | 6000*3820*3200 |
| Qhov hnyav tag nrho (kg) / Tag nrho qhov hnyav (kg) | kg | 10000 |
| Cov Rooj Ua Haujlwm / Lub Rooj Zaum Ua Haujlwm Specification (mm) | mm | 4150*2250 |
| Tswj qhov system | ESA CNC | |
| Servo lub cev muaj zog | YASKAWA | |
| Cov khoom siv hluav taws xob | Siemens, Schnider, Sanch | |
| Qhia rail/linear guide | Hiwin | |
| qhia rail style | Roj-immersed V-puab lem thiab racks ntawm crossbeam | |
| Laser Reticule Apparatus | √ | |
| Lubrication System | Duanrun | |
| Sib dhos saw hniav txoj kab uas hla | mm | 350-450 |
| Qhov siab tshaj plaws machined thickness / txiav qhov tob | mm | 100 |
| Qhov siab tshaj plaws lifting stroke | mm | 320 |
| Stroke (x-axis) | mm | 3500 |
| Stroke (y-axis) | mm | 2000 |
| Stroke (z-axis) | mm | 500 |
| Lub zog ntawm lub cev muaj zog | kws | 26.4 |
| Lub zog rau abrasive waterjet | kws | 37 |
| Yuav tsum tau siab ntawm inflow | Mpa | 0.4 |
| Max. kev khiav dej num siab | Mpa | 450 |
| Tilting ntawm lub taub hau (degree) | degree | 0-90 |
| Kev sib hloov ntau yam ntawm lub taub hau (degree) | degree | 360 |
| Tilting ntawm lub taub hau (degree) | degree | 0-60 |
| Kev sib hloov ntau yam ntawm lub taub hau (degree) | degree | 360 |
| Ua haujlwm ntau ntawm lub rooj (degree) | degree | T:0-85 R:0-360 |
| Kev siv dej | L / min | 11.4-16.7 |
Kev ua haujlwm ntawm peb lub tshuab
Cov khoom kawg
